21L2K1V55-BDV08024CY-C003-32-LV-2

21L2K1V55-BDV08024CY-C003-32-LV-2

21L2K1V55

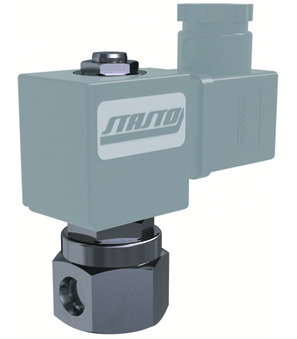

2/2-way solenoid valve Series 21L; Directly operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 5,5mm; Pressure AC 0-3,5bar; Pressure DC 0-1bar; Length 39mm
BDV08024CY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 24VDC
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

2/2-Wege-Magnetventil Serie 21L
2/2-Wege-Magnetventil Serie 21L
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.31 Kg
Short Itemnumber: 21L2K1V55BDV08024CYC00332LV2
https://www.stasto.com/web/image/product.template/219944/image_1920?unique=9b03112

21L2K1V55
2/2-way solenoid valve series 21L; directly operated; NC; body stainless steel AISI 316; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/4"; DN 5,5mm; pressure AC 0-3,5bar; pressure DC 0-1bar; length 39mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

194,80 € 194.8 EUR 194,80 €

price on request

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/4"
DN 5,5 mm
Length 39 mm
Pressure AC 0...3,5 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/4"
DN 5,5 mm
Length 39 mm
Pressure AC 0...3,5 bar
Pressure DC 0...1 bar
Seal FKM
Medium temperature -10...+120 °C
Voltage 24VDC
Voltage type DC
Design With integrated LED-yellow and VDR
Approval UL/CSA/VDE
