Valves, butterfly valves and gate valves - automatically operated

STASTO Allgemein com
Grundversion
DN Length Pressure range Voltage Design Brand Type Sequence
200 mm 61 mm 0...25 bar - - STASTO BUW9-200-SSIQ-D42 31360042
Varianten
DN Length Pressure range Voltage Design Brand Type Sequence
150 mm 56 mm 0...25 bar 24VDC / 48V/50-60Hz Standard STASTO BUW9-150-SSIS-D42-ABS54-C001-03-C002-31-6 31360039
150 mm 56 mm 0...25 bar 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR STASTO BUW9-150-SSIS-D42-ABS54-C001-03-C002-31-LV-2 31360040
150 mm 56 mm 0...25 bar 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) STASTO BUW9-150-SSIS-D42-ABS54-C001-03-C002-31-LVCV20-2 31360041
200 mm 61 mm 0...25 bar 230V/50-60Hz Standard STASTO BUW9-200-SSIQ-D42-ABS54-C001-22-C002-31-6 31360044
200 mm 61 mm 0...25 bar 230V/50-60Hz With integrated LED-yellow and VDR STASTO BUW9-200-SSIQ-D42-ABS54-C001-22-C002-31-LV-1 31360045
200 mm 61 mm 0...25 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) STASTO BUW9-200-SSIQ-D42-ABS54-C001-22-C002-31-LVCV20-1 31360046
200 mm 61 mm 0...25 bar 24VDC / 48V/50-60Hz Standard STASTO BUW9-200-SSIQ-D42-ABS54-C001-03-C002-31-6 31360047
200 mm 61 mm 0...25 bar 24VDC / 48V/50-60Hz With integrated LED-yellow and VDR STASTO BUW9-200-SSIQ-D42-ABS54-C001-03-C002-31-LV-2 31360048
200 mm 61 mm 0...25 bar 24VDC / 48V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) STASTO BUW9-200-SSIQ-D42-ABS54-C001-03-C002-31-LVCV20-2 31360049
BUW9-050-CSIS-D42

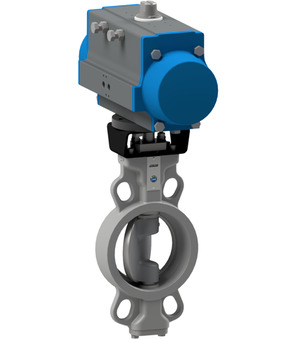

Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Actuator PAD100-H
To Series: Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4
DN Length Pressure range Voltage Design Brand Type
50 mm 43 mm 0...25 bar - - STASTO BUW9-050-CSIS-D42
Knife gate valve with double acting actuator Series A1N

Knife gate valve with double acting actuator Series A1N

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N
To Series: Knife gate valve with double acting actuator Series A1N
Grundversion
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Brand Type Sequence
50 mm 40 mm 0...10 bar -5...+90 °C - - - - - - STASTO A1N2H2-5-50-B 31370000
Varianten
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Brand Type Sequence
50 mm 40 mm 0...10 bar -5...+90 °C 24VDC Standard - - - - STASTO A1N2H2-5-50-B-ABS40-CS02400-6-14123-0000-S 31370001
BUW9-050-CSIS-D42-ABS54-C001-22-C002-31-6
BUW9-050-CSIS-D42
Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Actuator PAD100-H
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4
DN Length Pressure range Voltage Design Brand Type
50 mm 43 mm 0...25 bar 230V/50-60Hz Standard STASTO BUW9-050-CSIS-D42-ABS54-C001-22-C002-31-6
A1N2H2-5-50-B-ABS40-CS02400-C001-31-LVCV30-2
A1N2H2-5-50-B
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
C001-31-LVCV30-2
Connector; Connector size 16mm; mit eingebauter LED, VDR und PVC-Kabel (3 m); Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Brand Type
50 mm 40 mm 0...10 bar -5...+90 °C 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - - STASTO A1N2H2-5-50-B-ABS40-CS02400-C001-31-LVCV30-2
BUW9-050-CSIS-D42-ABS54-C001-22-C002-31-LV-1
BUW9-050-CSIS-D42
Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Actuator PAD100-H
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LV-1
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4
DN Length Pressure range Voltage Design Brand Type
50 mm 43 mm 0...25 bar 230V/50-60Hz With integrated LED-yellow and VDR STASTO BUW9-050-CSIS-D42-ABS54-C001-22-C002-31-LV-1
A1N2H2-5-50-B-ABS40-CS02400-6-14423-0525
A1N2H2-5-50-B
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14423-0525
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Brand Type
50 mm 40 mm 0...10 bar -5...+90 °C 24VDC With integrated LED-yellow and VDR - - - - STASTO A1N2H2-5-50-B-ABS40-CS02400-6-14423-0525
BUW9-050-CSIS-D42-ABS54-C001-22-C002-31-LVCV20-1
BUW9-050-CSIS-D42
Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Actuator PAD100-H
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-LVCV20-1
Connector; Connector size 22mm; With integrated LED-yellow, VDR and PVC-cable (2 m); Voltage 230VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4
DN Length Pressure range Voltage Design Brand Type
50 mm 43 mm 0...25 bar 230V/50-60Hz With integrated LED-yellow, VDR and PVC-cable (2 m) STASTO BUW9-050-CSIS-D42-ABS54-C001-22-C002-31-LVCV20-1
A1N2H2-5-50-B-ABS40-CS23050-6-14123-0000-S
A1N2H2-5-50-B
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS23050
Coil Type CS; Connector size 16mm; Voltage 230V/50-60Hz
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Brand Type
50 mm 40 mm 0...10 bar -5...+90 °C 230V/50-60Hz Standard - - - - STASTO A1N2H2-5-50-B-ABS40-CS23050-6-14123-0000-S
BUW9-050-CSIS-D42-ABS54-C001-03-C002-31-6
BUW9-050-CSIS-D42
Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 50mm; Length 43mm; Actuator PAD100-H
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
To Series: Butterfly valve with pneumatic actuator Series BUW9-CSIS-D4
DN Length Pressure range Voltage Design Brand Type
50 mm 43 mm 0...25 bar 24VDC / 48V/50-60Hz Standard STASTO BUW9-050-CSIS-D42-ABS54-C001-03-C002-31-6
